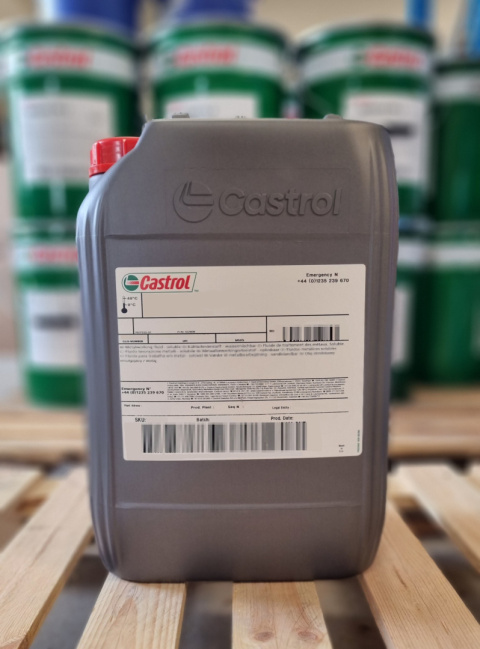

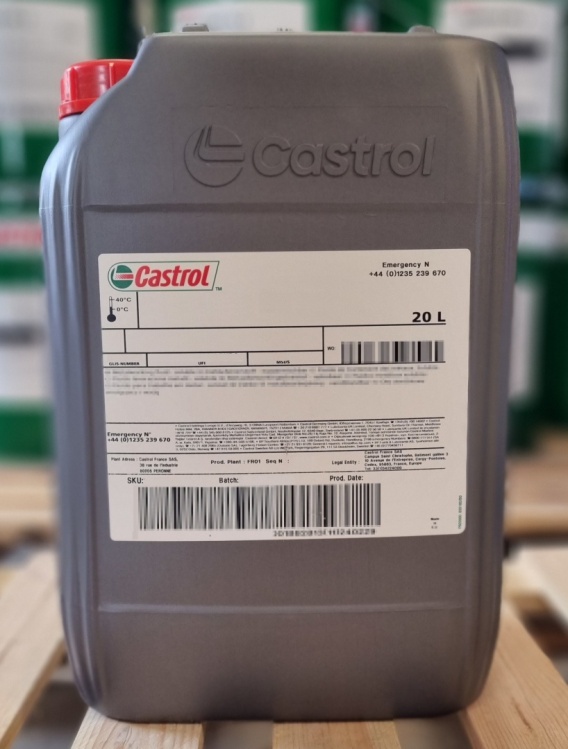

Castrol Iloform CFX 160, 20L

Castrol Iloform CFX 160 is a high performance, medium viscosity mineral oil designed for demanding metal forming operations. The formulation of the product is based on an innovative Anti-Wear (EP) additive package that provides excellent lubricating properties and high load resistance, without the need for chlorinated additives. The product is dedicated to the most precise punching and deep-drawing operations of carbon and stainless steels.

Use:

Castrol Iloform CFX 160 is designed for cold forming of carbon steels, stainless steels and high alloy steels. Especially recommended for complex operations of accurate punching, deep drawing and bending of sheet metal up to 20 mm thick. The product should be used undiluted. It is not compatible with non-ferrous metals.

Advantages and benefits of use:

• No chlorinated additives: safe for the environment and compliant with health and safety and disposal regulations.
• High load capacity: effectively protect your tooling and extend its service life.
• Excellent wetting properties: Perfectly even and clean edges of the punched parts are guaranteed.
• Low susceptibility to corrosion: the absence of aggressive additives ensures greater durability of the components.
• Operator-friendly: mild odour and working comfort.
• Easy washability: can be removed with Castrol industrial cleaning agents.

Classification according to standards:

• ISO/ASTM: product tested according to ISO 3104, ASTM D445, D92 standards.

Approvals and approvals:
The product complies with the requirements of modern precision forming processes without chlorinated additives.

Specifications:

Storage:
Store in tightly closed original containers, in a dry and cool place at a temperature between 5°C and 45°C. Protect from freezing, moisture and direct sunlight.

Documents to download:
Product sheets
