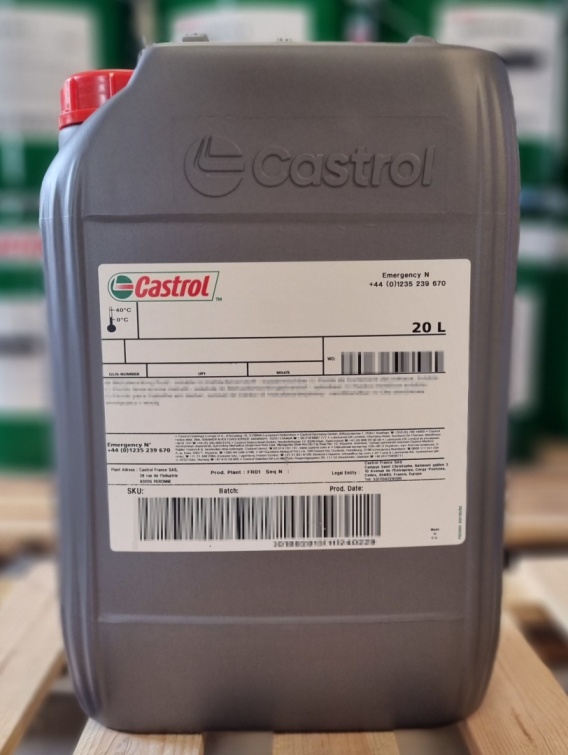

Castrol Magna 150, 20L

Castrol Magna 150 is a high-quality, additive-free mineral lubricating oil in ISO VG 150 viscosity grade. Manufactured from highly refined mineral base oils, it provides inherently good resistance to oxidation and effective demulsification properties. Castrol Magna 150 is suitable for a variety of industrial lubrication applications where non-additivated oils are required, including bearings and moderately loaded gearboxes. Its high-quality mineral base oil supports long service life, while the low pour point helps ensure reliable operation in cold conditions.

Applications:

Castrol Magna 150 is suitable for a wide range of industrial lubrication applications, including bearings and, as one of the heavier viscosity grades in the Magna range, moderately loaded gearboxes. The Magna range can also be used in vacuum pumps and hydraulic systems where an ISO HH type fluid is required. Product selection should always take into account the viscosity grade and lubrication requirements specified by the equipment manufacturer.

Product advantages and benefits:

• High-quality additive-free formulation: suitable for applications where non-additivated mineral lubricating oils are required.
• Highly refined mineral base oil: provides reliable lubrication performance in a variety of industrial applications.
• Good oxidation resistance: helps maintain lubricant properties during service and supports reliable equipment operation.
• Good demulsification properties: promote effective separation of water from the lubricant.
• Long service life: the use of good-quality mineral base oil supports extended and reliable lubricant performance.
• Suitable for moderately loaded gearboxes: ISO VG 150 viscosity makes the product suitable for selected industrial gear lubrication applications where an additive-free oil is specified.
• Reliable low-temperature performance: a low pour point helps provide trouble-free operation in cold conditions.
• Wide industrial application range: the Magna range can be used for bearings, spindles, gearboxes, vacuum pumps and hydraulic systems, depending on the viscosity grade required.
• Seal compatibility: the Magna range is fully compatible with nitrile, silicone and fluoropolymer sealing materials.

Classification according to ISO standards:

• ISO VG – 150
• ISO 6743-4 – Type HH

DIN classification:
The attached Castrol product data sheet does not specify a DIN classification for the Magna range.

Approvals and specifications:
The attached Castrol Magna Range product data sheet does not list separate OEM approvals for Castrol Magna 150. The product range is classified according to ISO 6743-4 as Type HH.

Technical data – Castrol Magna 150:

Additive-free mineral oil technology:
Castrol Magna 150 is based on highly refined mineral oil and does not contain an additive package. This makes it suitable for equipment and lubrication systems specifically designed to operate with non-additivated oils. The inherent properties of the mineral base oil provide good oxidation resistance and water separation performance.

Gearbox and bearing lubrication:
As a heavier viscosity grade within the Magna range, Castrol Magna 150 can be used for the lubrication of moderately loaded gearboxes where an additive-free lubricant of the appropriate viscosity is specified. The product is also suitable for bearing lubrication, providing a stable lubricating film in appropriate industrial applications.

Water separation:
Good demulsification properties help Castrol Magna 150 separate from water during operation. This characteristic is beneficial in industrial lubrication systems where contamination with moisture may occur and effective separation of water from the oil is required.

Seal compatibility:
The Castrol Magna range is fully compatible with nitrile, silicone and fluoropolymer sealing materials. The compatibility of the lubricant with the specific materials and operating conditions of the equipment should nevertheless always be confirmed before use.

Storage and handling:
Castrol Magna 150 should be stored in its original, tightly closed container and protected from water, moisture and contamination. Before use, the required viscosity grade and suitability of an additive-free ISO HH lubricant should be confirmed against the equipment manufacturer's recommendations.

Castrol Magna 150 is a high-quality additive-free ISO VG 150 mineral lubricating oil for bearings, moderately loaded gearboxes and other suitable industrial applications. Good oxidation resistance, effective water separation and reliable mineral oil performance support long and trouble-free equipment operation. The Magna range is classified according to ISO 6743-4 as Type HH.

Documents to download:
Product Data Sheets
