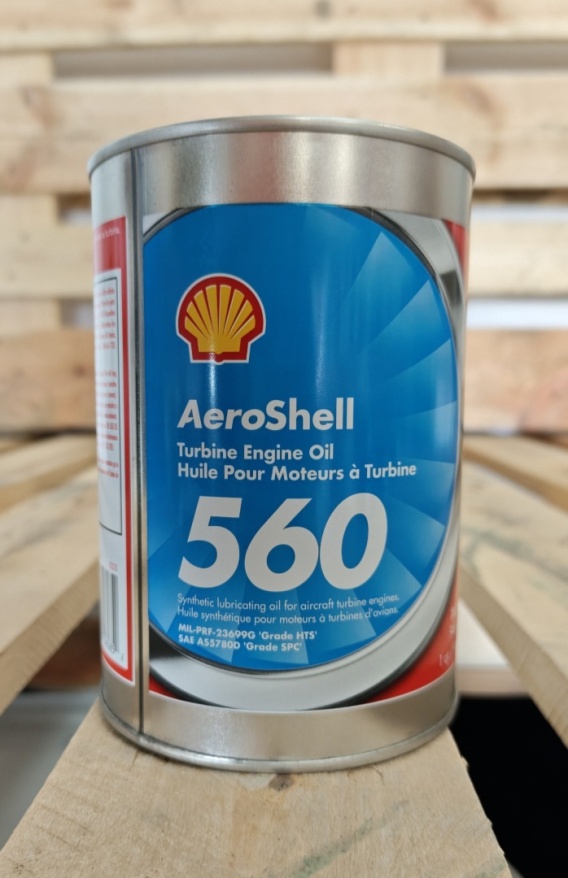

• SHELL AeroShell Turbine Oil 560, 1QT/0,95L

Olej turbinowy

162.36
162.36
opak
Add to wishlist
Shipping within 48 hours
Shipping price The Lack Of
The Availability Of 4 opak

Phone orders: 609 181 786

AeroShell Turbine Oil 560
high thermal stability 5 cSt synthetic turbine oil for aircraft turbine engines

AeroShell Turbine Oil 560 is a third-generation, high-performance, low-coking 5 mm²/s synthetic turbine oil based on synthetic hindered esters and a carefully selected, finely balanced additive system. Its advanced formulation provides excellent thermal and oxidation stability and helps reduce oil coking in high-temperature bearing areas. AeroShell Turbine Oil 560 has been developed for modern, high-powered, high-compression aircraft turbine engines operating under severe temperature, pressure and load conditions where older-generation lubricants may be stressed up to or beyond their thermal limits.

Applications:

AeroShell Turbine Oil 560 is designed for the lubrication of modern aircraft turbine engines operating under high temperatures, high pressures and severe loads. The product was developed to withstand the demanding operating environments of today's high-powered, high-compression engines and to help overcome oil coking problems in high-temperature bearing areas. AeroShell Turbine Oil 560 is approved for use in a wide range of aircraft engines and auxiliary power units (APUs), subject to the applicable equipment manufacturer approvals. It is also approved for selected industrial and marine versions of aero-derived turbine engines.

Product advantages and benefits:

  • Excellent thermal stability: provides reliable lubrication in modern turbine engines exposed to severe operating temperatures.
  • Enhanced anti-coking performance: the advanced formulation helps minimise deposit formation in high-temperature bearing areas.
  • High oxidation stability: helps reduce lubricant degradation during prolonged operation under demanding conditions.
  • Cleaner engine operation: reduced deposit formation helps maintain cleaner internal engine components.
  • Improved load-carrying capacity: provides effective protection for highly loaded turbine engine components.
  • Extended bearing life: advanced lubricating performance helps prolong bearing life in both new and existing engines.
  • Reduced maintenance costs: cleaner engine operation and improved component protection can help reduce maintenance requirements.
  • Excellent low-temperature performance: a typical pour point of -60°C supports reliable lubrication under extremely cold operating conditions.
  • Low evaporation loss: a typical evaporation loss of only 2.0% after 6.5 hours at 204°C demonstrates excellent resistance to evaporation at elevated temperatures.
  • Extensive equipment approvals: approved for use in numerous aircraft turbine engines and auxiliary power units from leading manufacturers.

Specifications and classifications:

  • MIL-PRF-23699G – Grade HTS (High Thermal Stability)
  • SAE AS5780D – Grade SPC (Standard Performance Capability)
  • DEF STAN 91-101 – British equivalent
  • COMAC QPL-CMS-OL-202
  • DCSEA 299/A – French equivalent
  • VNII NP 50-1-4F, B3V, LZ-240, VNII NP 50-1-4U and 36/Ku-A – Russian analogues
  • NATO Code – O-154
  • Joint Service Designation – OX-27 equivalent
  • Pratt & Whitney 521C – Type II
  • General Electric D-50 TF 1
  • Allison EMS-53 – obsolete specification

Approvals and recommendations:

  • CFM: CFM56 and LEAP series.
  • Engine Alliance: GP7200 series.
  • General Electric: CF34, CF6, GE90, GEnx, GE9X, Passport, H series, Catalyst and CF700.
  • Honeywell: CFE738, ALF502, LF507, TPE331 and CTS800.
  • IAE: V2500 Series.
  • Pratt & Whitney Canada: JT15, PT6, PW110, PW120, PW200 and PW300 series.
  • Pratt & Whitney: JT3C, JT8D, JT9D, PW4000, PW6000 and PW2000 for in-service evaluation.
  • Rolls-Royce: Model 250, BR710, RB211 series, Tay, Spey, Tyne, Avon and RB199.
  • Safran Helicopter Engines: MTR390, Astazou, Arrius and Artouste.
  • Honeywell APUs: all APUs requiring 5 cSt oils.
  • Pratt & Whitney APUs: APS Series for 5 cSt oils, PW901 and PW980.

Additional applications:
AeroShell Turbine Oil 560 is also approved for use in industrial and marine versions of Pratt & Whitney FT Series engines, all General Electric LM Series aero-derived engines, and Siemens applications where Rolls-Royce engines are approved. The latest approval status should always be confirmed with the equipment manufacturer before use.

Technical data:

Property Unit Test Method Typical Value
Oil type - - Synthetic ester
Kinematic viscosity at 100°C mm²/s ASTM D445 5.21
Kinematic viscosity at 40°C mm²/s ASTM D445 26.7
Kinematic viscosity at -40°C mm²/s ASTM D2532 10,229
Flash point (Cleveland Open Cup) °C ASTM D92 268
Pour point °C ASTM D5950 -60
Total acidity mg KOH/g SAE-ARP-5088 0.20
Evaporation loss, 6.5 h at 204°C % m ASTM D972 2.0
Foaming tendency ml ASTM D892 Passes
Thermal stability / corrosivity – metal weight change after 96 h mg/cm² FED-STD-791 M.3411 Passes
Thermal stability / corrosivity – viscosity change after 96 h % FED-STD-791 M.3411 Passes
Thermal stability / corrosivity – total acid number change after 96 h mg KOH/g FED-STD-791 M.3411 Passes
Corrosion and oxidation stability, 72 h at 204°C - ASTM D4636 – Alternate Proc. 2 Passes
Ryder gear test, relative rating to Hercolube A % FED-STD-791 M.6508 Passes
Bearing Test Rig Type 1 1/2 – overall deposit demerit rating, 200 h - FED-STD-791 M.3410 Passes
Bearing Test Rig Type 1 1/2 – viscosity change at 40°C % FED-STD-791 M.3410 Passes
Bearing Test Rig Type 1 1/2 – total acid number change mg KOH/g FED-STD-791 M.3410 Passes
Bearing Test Rig Type 1 1/2 – filter deposits g FED-STD-791 M.3410 Passes
Trace metal content - ASTM D5185 or ASTM D6595 Passes
Sediment mg/l FED-STD-791 M.3010 Passes

Material compatibility:
AeroShell Turbine Oil 560 contains a synthetic ester base oil and should not be used in contact with incompatible seal materials. The product may also affect certain paints and plastics. Compatibility with the materials used in the particular lubrication system should therefore be verified before use, and the latest requirements of the engine or equipment manufacturer should always be followed.

Storage and handling:
The product should be stored in its original, tightly closed container and protected from moisture and contamination. Good standards of personal hygiene should be maintained during use, and the recommendations provided in the current Safety Data Sheet should be followed. Used oil should be taken to an authorised collection point and must not be discharged into drains, soil or water.

AeroShell Turbine Oil 560 is an advanced 5 cSt synthetic aviation turbine oil developed for modern, high-powered and high-compression aircraft turbine engines. Its excellent thermal and oxidation stability, enhanced anti-coking performance and improved load-carrying capacity help maintain cleaner engines, protect bearings and reduce maintenance requirements. MIL-PRF-23699G Grade HTS and SAE AS5780D Grade SPC approvals, together with an extensive range of engine and APU approvals, make AeroShell Turbine Oil 560 a proven solution for demanding professional aviation applications.
